Harmonics Filtering Cabinet

Professional Production
Professional Production

Standardized production line, strictly control the manufacturing process.

OEM/ODM Service
OEM/ODM Service

Offer OEM/ODM service and one-stop solution as per your specific requirements.

Serve Clients Worldwide
Serve Clients Worldwide

Wenlida products have been exported to more than 180 countries and regions.

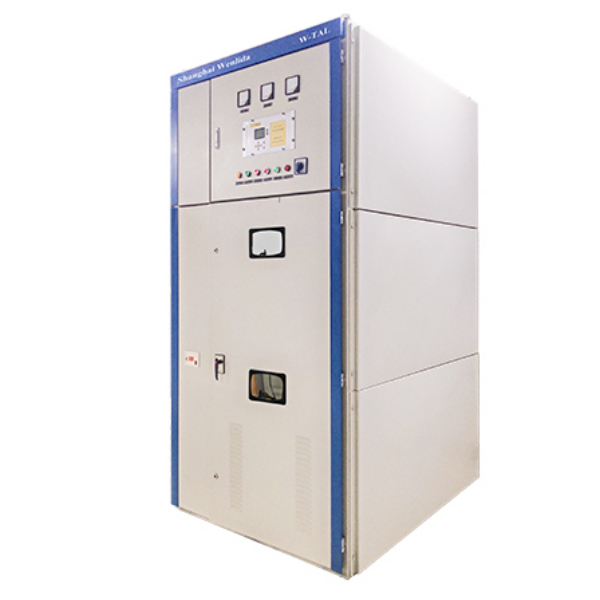

High Harmonic Filtering Cabinet

The WT-TAL high voltage harmonic filter harnesses the principle of capacitive reactance resonance. Fine-tuned LC components enable the filter to present low impedance to high-order harmonic currents at specific frequencies. This effectively redistributes harmonics, reducing their overall impact. Additionally, the filter injects capacitive reactive power, regulating voltage, minimizing line losses, and optimizing power delivery. As a result, the WT-TAL filter enhances system power quality.

  • Rated voltage6~35KV
  • Rated Capacity100~20000kvar
  • Altitude≤2000m
  • Wind speed≤35m/s
Introducing our cutting-edge solution for electrical systems optimization – the Harmonics Filtering Cabinet. Designed with precision and innovation, this cabinet is engineered to address and mitigate harmonic distortions, ensuring a cleaner and more efficient power environment for your critical equipment.

Key Features: Harmonics Filtering Cabinet

  1. Harmonic Mitigation: The Harmonics Cabinet is equipped with advanced filtering technology to reduce harmonic distortions in electrical systems effectively. By targeting and eliminating harmonics, this cabinet enhances the overall power quality, minimizing disruptions and improving the performance of sensitive equipment.
  2. Customizable Filtering Solutions: Our cabinet offers flexibility to adapt to various harmonic profiles and system requirements. With customizable filtering options, users can tailor the cabinet's performance to specific harmonic frequencies, ensuring optimal results for diverse applications.
  3. Reliability and Durability: Built with durability in mind, the cabinet features robust construction and high-quality components. It is designed to withstand the demands of industrial and commercial environments, providing long-lasting and reliable harmonic filtering for your electrical systems.
  4. Easy Integration: The Harmonics Cabinet is designed for seamless integration into existing electrical setups. With user-friendly interfaces and straightforward installation processes, incorporating this solution into your system is efficient and hassle-free.
  5. Real-time Monitoring and Analytics: Stay in control with real-time monitoring and analytics capabilities. The cabinet provides valuable insights into the performance of your electrical system, allowing for proactive maintenance and optimized operation.
  6. Energy Efficiency: The Harmonics Filtering Cabinet contributes to improved energy efficiency by reducing harmonic distortions. Minimized losses and optimized power quality result in lower energy consumption, translating to cost savings over time.

Applications: Harmonics Filtering Cabinet

  1. Renewable Energy Systems: Harmonic distortions can be a concern in renewable energy systems, such as solar and wind installations. A Harmonics Filtering Cabinet can help improve the overall power quality in these systems.
  2. Telecommunications Infrastructure: Telecommunication networks often use sensitive electronic equipment susceptible to harmonics. Implementing harmonic filtering helps maintain the reliability of communication systems.
  3. Utilities and Power Distribution: Utilities and power distribution companies can use Harmonics Filtering Cabinets to mitigate harmonics introduced by various loads connected to the grid, ensuring the delivery of clean and stable power to consumers.
  4. Research Facilities: Laboratories and research facilities that utilize precise instruments and equipment may deploy Harmonics Filtering Cabinets to safeguard against power quality issues that could affect experiments and measurements.
  5. Residential Applications: In some cases, particularly in areas with known power quality issues, homeowners might use harmonic filtering solutions to protect sensitive electronic devices and appliances.
Whether you operate a manufacturing facility, data centre, or any other facility with critical power needs, our Harmonics Filtering Cabinet is the solution to elevate your power infrastructure to new levels of reliability and efficiency.
